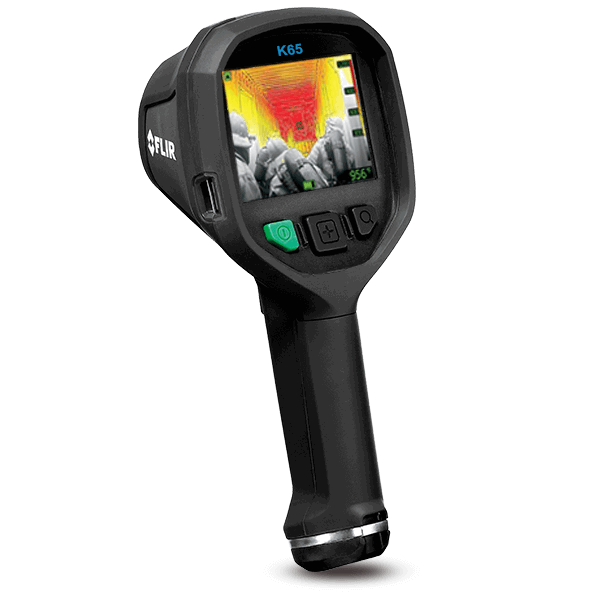

FLIR K65 NFPA Compliant TIC (3 Button)
TFLK65
Bulk Buy
Special Options
The FLIR K65 Enhanced 2024 Model is the advanced, feature-rich thermal imaging camera you need when NFPA® compliance is a must. With fully sealed connectors and a secured battery, the K65 is designed to be fully compliant with the NFPA 1801-2021 Standard for Thermal Imagers covering usability, image quality, and durability for firefighting.
Categories: All Products, Thermal Cameras
Brand: FLIR
$5,999.00
- IR Resolution
- 320 × 240 pixels
- Display
- 4 in. LCD, 320 × 240 pixels, backlit
- Object Temperature Range
- –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
- Image Modes
- IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
- Camera weight incl battery
- 1.1 ±0.05 kg (2.4 ±0.1 lb.)
- Camera size (L x W x H)
- 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.)
Imaging & Optical
- Contrast optimization
- Digital image enhancement using FSX
- Depth of Field
- 0.84 m to infinity (33 in. to infinity)
- Detector Type
- Focal plane array (FPA), uncooled microbolometer (VOx)
- Field of view (FOV)
- 51° × 38°
- f-number
- 1.25
- Focal Length
- 9 mm (0.35 in.)
- Focus
- Fixed
- Image Frequency
- 60 Hz
- Image Modes
- IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
- IR Resolution
- 320 × 240 pixels
- Non-radiometric IR video recording
- MPEG-4 to internal flash memory
- Non-radiometric IR video streaming
- Uncompressed colorized video using USB
- Pitch
- 25 µm
- Spatial resolution (IFOV)
- 2.8 mrad
- Spectral Range
- 7.5-13 µm
- Storage Capacity
- 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images.
- Thermal Sensitivity/NETD
- <30 mK @ 30°C (86°F)
- Zoom
- 2× digital zoom
Environmental & Certifications
- Compliance
- •NFPA1801:2021 •Ex-certified according to ANSI/ISA 12.12.01-2015 and meets Class I Division 2 Groups C and D •Class II Division 2 Groups F and G, Temperature Code T4/T135°C
- Directives
- Certified according to NFPA 1801:2021 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability
- Drop
- 2 m(6.6 ft.) on concrete floor (IEC 60068-2-31)
- EMC
- EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)
- Encapsulation
- IP 67 (IEC 60529)
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C(77°F to 104°F)/ 2 cycles
- Magnetic fields
- EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
- Operating Temperature Range
- -20°C to 60°C (-4°F to 140°F): infinity
150°C (302°F): 15 min.
260°C (500°F): 5 min.
- Relative Humidity
- 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –40°C to 85°C(–40°F to 185°F)
- Tripod Mounting
- UNC 1/4"-20 (adapter needed)
- Vibration
- 2 g (IEC 60068-2-6)
Power
- Battery capacity
- 4.4 Ah, at 20°C to 25°C (68°F to 77°F)
- Battery operating time
- Approx. 4 hours at 25°C (77°F) ambient temperature and typical use. This operating time is independent of camera mode.
- Battery Type
- Li Ion
- Battery voltage
- 3.6 V
- Battery weight
- 0.152 kg(0.3 lb.)
- Charging system
- Battery is charged inside the camera 2-bay charger Optional In-truck charger
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 2 h to 85% capacity, charging status indicated by LEDs
- Power Management
- Automatic shutdown and sleep mode
- Safety [power supply]
- CE/EN/UL/CSA/PSE 60950-1
- Start Up Time
- <17 s. (IR image, no GUI)
- Start-up time from sleep mode
- <4 s.
Measurement & Analysis
- Accuracy
- ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
- Auto Range
- Yes, selectable on/off using FLIR Tools®
- Automatic Hot Detection
- Heat detection mode (the hottest 20% of the of scene is colorized)
- Camera size (L x W x H)
- 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.)
- Camera weight incl battery
- 1.1 ±0.05 kg (2.4 ±0.1 lb.)
- Isotherm
- Yes, according to NFPA
- Object Temperature Range
- –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
- Set-up Commands
- Local adaptation of units, date and time formats
- Spot Meter
- 1.0
General
- Compatible with FLIR software
- FLIR Tools®
- Material
- PPSU Silicon rubber Aluminum, cast Flame-resistant magnesium alloy
- Packaging Size
- 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
User Interface
- Display
- 4 in. LCD, 320 × 240 pixels, backlit
- Languages
- English
- Report Generation
- Separate software (FLIR Tools)
Communication & Data Storage
- File Formats
- Standard JPEG
- Image Storage
- Standard JPEG; Image freeze: configurable
- Image Storage Capacity
- 200 files in total the total number of files is co-dependent on the number of saved video clips.
- Image Storage Mode
- IR only
- Interface
- Update from PC devices Data transfer to and from PC
- Storage Media
- Internal flash memory
- USB
- USB Mini-B
