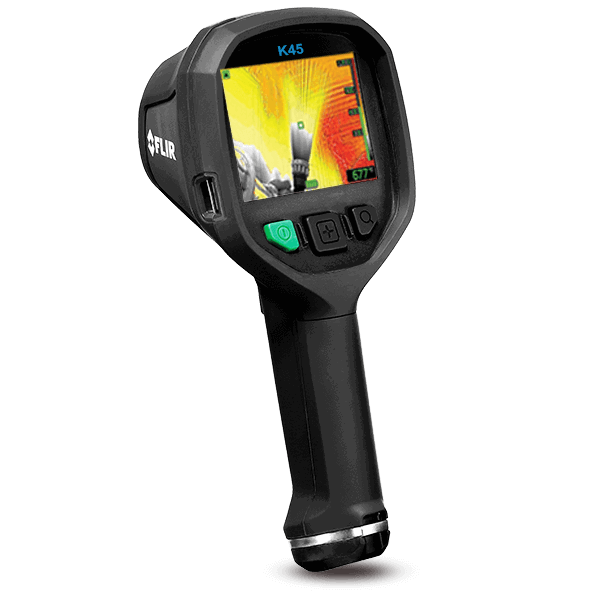

FLIR K45 High-Performance TIC

Imaging & Optical

Contrast optimization

Digital image enhancement using FSX

Depth of Field

0.84 m to infinity (33 in. to infinity)

Detector Type

Focal plane array (FPA), uncooled microbolometer

Field of view (FOV)

51° × 38°

f-number

1.25

Focal Length

9 mm (0.35 in.)

Focus

Fixed

Image Frequency

60 Hz

Image Modes

IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery

IR Resolution

240 × 180 pixels

Non-radiometric IR video recording

-

Non-radiometric IR video streaming

Uncompressed colorized video using USB

Pitch

25 µm

Spatial resolution (IFOV)

3.6 mrad

Spectral Range

7.5–13 µm

Storage Capacity

Up to 200 images

Thermal Sensitivity/NETD

<40 mK @ 30°C(86°F)

Zoom

2× digital zoom

Environmental & Certifications

Compliance

-

Drop

2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)

EMC

EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)

Encapsulation

IP 67 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles

Magnetic fields

EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)

Operating Temperature Range

-20°C to 60°C (-4°F to 140°F): infinity
150°C (302°F): 15 min.
260°C (500°F): 5 min.

Relative Humidity

95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing.

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 85°C (–40°F to 185°F)

Tripod Mounting

UNC ¼"-20 (adapter needed)

Vibration

2 g (IEC 60068-2-6)

Power

Battery capacity

6.2 Ah, at 20°C to 25°C (68°F to 77°F)

Battery operating time

>5 hours at 25°C (77°F) ambient temperature and typical use

Battery Type

Li Ion

Battery voltage

3.6 V

Battery weight

0.152 kg (0.3 lb.)

Charging system

Battery is charged inside the camera 2-bay charger Optional In-truck charger

Charging Temperature

0°C to 45°C (32°F to 113°F)

Charging Time

2 h to 85% capacity, charging status indicated by LEDs

Power Management

Automatic shutdown and sleep mode

Safety [power supply]

CE/EN/UL/CSA/PSE 60950-1

Start Up Time

<17 s. (IR image, no GUI)

Start-up time from sleep mode

<4 s.

Measurement & Analysis

Accuracy

±4°C(±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)

Auto Range

Yes, selectable on/off using FLIR Tools®

Automatic Hot Detection

Heat detection mode (the hottest 20% of the of scene is colorized)

Camera size (L x W x H)

120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)

Camera weight incl battery

1.1 ±0.05 kg (2.4 ±0.1 lb.)

Isotherm

Yes

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

Set-up Commands

Local adaptation of units, date and time formats

Spot Meter

1.0

General

Compatible with FLIR software

FLIR Tools®

Material

PPSU Silicon rubber Aluminum, cast Flame-resistant magnesium alloy

Packaging Size

500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)

User Interface

Display

4 in. LCD, 320 × 240 pixels, backlit

Languages

English

Report Generation

Separate software (FLIR Tools)

Communication & Data Storage

File Formats

Standard JPEG

Image Storage

Standard JPEG; Image freeze: configurable

Image Storage Capacity

200 images

Image Storage Mode

IR only

Interface

Update from PC devices Data transfer to and from PC

Storage Media

Internal flash memory

USB

USB Mini-B
