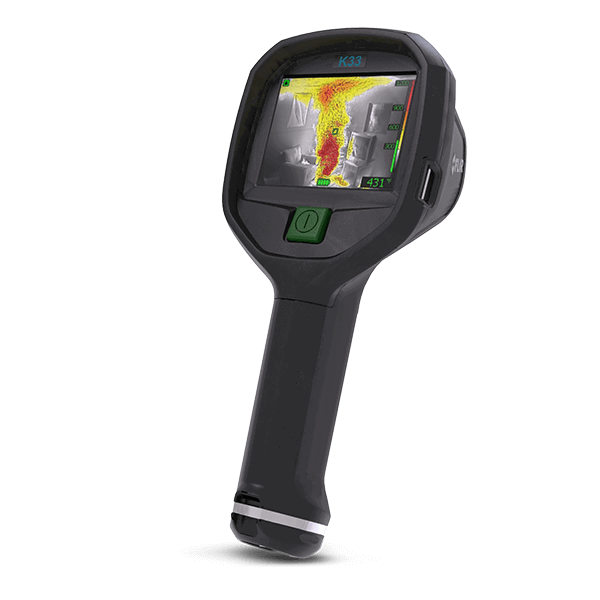

FLIR K33 High-Performance TIC
TFLK33
Bulk Buy
Special Options
Enhanced 2024 Model
FLIR now gives you a low-cost, easy-to-use option that doesn't sacrifice the reliable clarity and performance you need — the FLIR K33. This TIC features FSX™ Flexible Scene Enhancement, which intensifies structural and textural details in thermal images. The enhanced perspective and orientation help improve situational awareness and give firefighters a greater sense of confidence and safety.
Categories: All Products, Thermal Cameras
Brand: FLIR
$3,099.00
- IR Resolution
- 240 × 180 pixels
- Display
- 4 in. LCD, 320 × 240 pixels, backlit
- Object Temperature Range
- –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
- Image Modes
- TI Basic fire-fighting mode
- Camera weight incl battery
- 1.1 ±0.05 kg (2.4 ±0.1 lb.)
- Camera size (L x W x H)
- 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
Imaging & Optical
- Contrast optimization
- Digital image enhancement using FSX
- Depth of Field
- 0.84 m to infinity (33 in. to infinity)
- Detector Type
- Focal plane array (FPA), uncooled microbolometer
- Field of view (FOV)
- 51° × 38°
- f-number
- 1.25
- Focal Length
- 9 mm (0.35 in.)
- Focus
- Fixed
- Image Frequency
- 60 Hz
- Image Modes
- TI Basic fire-fighting mode
- IR Resolution
- 240 × 180 pixels
- Non-radiometric IR video streaming
- Uncompressed colorized video using USB
- Pitch
- 25 µm
- Spatial resolution (IFOV)
- 3.6 mrad
- Spectral Range
- 7.5–13 µm
- Thermal Sensitivity/NETD
- <40 mK @ 30°C (86°F)
Environmental & Certifications
- Drop
- 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
- EMC
- EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)
- Encapsulation
- IP 67 (IEC 60529)
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
- Magnetic fields
- EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
- Operating Temperature Range
- -20°C to 60°C (-4°F to 140°F): infinity
150°C (302°F): 15 min.
260°C (500°F): 5 min.
- Relative Humidity
- 95% relative humidity +25°C to 40°C (77°F to 104°F) non-condensing
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –40°C to 85°C (–40°F to 185°F)
- Tripod Mounting
- UNC ¼"-20 (adapter needed)
- Vibration
- 2 g (IEC 60068-2-6)
Power
- Battery capacity
- 6.2 Ah, at 20°C to 25°C (68°F to 77°F)
- Battery operating time
- >5 hours at 25°C (77°F) ambient temperature and typical use
- Battery Type
- Li Ion
- Battery voltage
- 3.6 V
- Battery weight
- 0.152 kg (0.3 lb.)
- Charging system
- Battery is charged inside the camera 2-bay charger Optional In-truck charger
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 2 h to 85% capacity, charging status indicated by LEDs
- Power Management
- Automatic shutdown and sleep mode
- Safety [power supply]
- CE/EN/UL/CSA/PSE 60950-1
- Start Up Time
- <17 s. (IR image, no GUI)
- Start-up time from sleep mode
- <4 s.
Measurement & Analysis
- Accuracy
- ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
- Auto Range
- Yes, selectable on/off using FLIR Tools®
- Camera size (L x W x H)
- 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
- Camera weight incl battery
- 1.1 ±0.05 kg (2.4 ±0.1 lb.)
- Isotherm
- Yes
- Object Temperature Range
- –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
- Set-up Commands
- Local adaptation of units, date and time formats
- Spot Meter
- 1.0
General
- Compatible with FLIR software
- FLIR Tools®
- Material
- PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy
- Packaging Size
- 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
User Interface
- Display
- 4 in. LCD, 320 × 240 pixels, backlit
- Languages
- English
Communication & Data Storage
- Image Storage
- No JPEG storage; Image freeze: configurable
- Image Storage Capacity
- NA
- Interface
- Update from PC devices Data transfer to and from PC
- USB
- USB Mini-B
