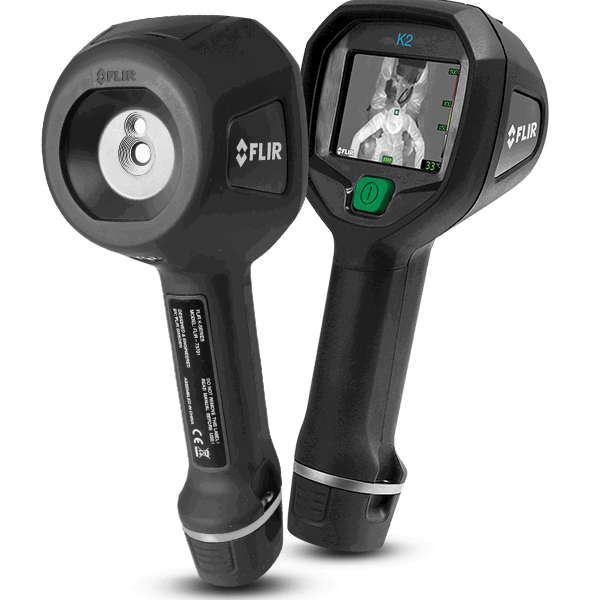

FLIR K2 Compact TIC with MSX

Imaging & Optical

Built-in Digital Camera

640 × 480 pixels

Depth of Field

0.1 m (0.33 ft.), infinity

Detector Type

Focal plane array, uncooled microbolometer

Digital Camera FOV

73° × 61°, adapts to the IR lens

Field of view (FOV)

47° × 35°

f-number

1.1

Focal Length

1.9 mm (0.075 in.)

Focus

Fixed

Image Frequency

9 Hz

Image Modes

Basic fire-fighting mode (default) Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Cold detection mode Building analysis mode

IR Resolution

160 × 120 pixels

Multi Spectral Dynamic Imaging (MSX)

Yes

Pitch

12 µm

Spatial resolution (IFOV)

6.22 mrad

Spectral Range

7.5–13 µm

Thermal Sensitivity/NETD

<100 mK @ 30°C (86°F)

Environmental & Certifications

Corrosion

ASTM B117, salt spray, 5% saline solution in 48 hours and 35°C

Drop

2 m (6.6 ft.)

EMC

EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC 47 CFR Part 15 B (emission)

Encapsulation

IP 67 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30, 24 hours, 95% relative humidity, 25–40°C (77–104°F), 2 cycles

Magnetic fields

EN 61 000-4-8, test level 5 for continuous field (severe industrial environment)

Operating Temperature Range

–10°C to 55°C (14°F to 131°F): infinity 85°C (185°F): 15 minutes 150°C (302°F): 10 minutes 260°C (500°F): 3 minutes

Relative Humidity

95% relative humidity, 25–40°C (77–104°F), non-condensing

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 70°C (–40°F to 158°F)

Tripod Mounting

UNC 1/4"-20

Vibration

2 g (IEC 60068-2-6)

Power

Battery capacity

2.6 Ah at 20–25°C (68–77°F)

Battery operating time

Approximately 4 hours at 25°C (77°F) ambient temperature and typical use

Battery Type

Li ion

Battery voltage

3.6 V

Battery weight

0.119 kg (0.26 lb.)

Charging system

Battery is charged inside the camera or in a dedicated charger

Charging Temperature

0–45°C (32–113°F)

Charging Time

2.5 h to 90% capacity, charging status indicated by LEDs

Power Management

Automatic shutdown and sleep mode

Safety [power supply]

CE/EN/UL/CSA/PSE 60950-1

Start Up Time

30 seconds

Start-up time from sleep mode

10 seconds

Measurement & Analysis

Accuracy

±4°C (±7.2°F) or ±4% for ambient temperatures of 10–35°C (50–95°F)

Auto Range

Auto, non-selectable

Automatic Hot Detection

Heat detection mode (the hottest 20% of the of scene is colorized)

Camera size (L x W x H)

250 mm x 105 mm x 90 mm (9.8 in. x 4.1 in. x 3.5 in.)

Camera weight incl battery

0.7 kg (1.54 lb.)

Isotherm

Yes

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 500°C (32°F to 932°F)

Spot Meter

1.0

General

Compatible with FLIR software

FLIR Tools®

Material

PPSU Silicon rubber Aluminum, cast Flame-resistant magnesium alloy

Packaging Size

323 × 325 × 110 mm (12.7 × 12.8 × 4.3 in.)

User Interface

Display

3 in. LCD, 320 × 240 pixels, backlit

Communication & Data Storage

Image Storage

NA

Image Storage Capacity

NA

Image Storage Mode

NA

Interface

Update from PC devices

USB

USB Micro-B
