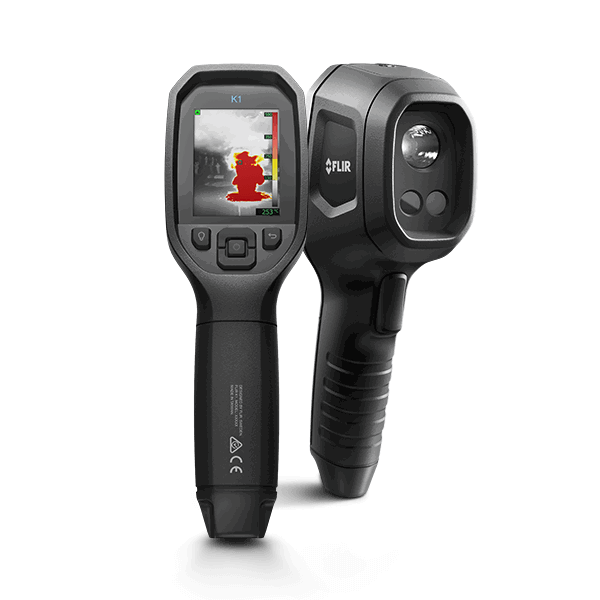

FLIR K1 Situational Awareness Camera
TFLK01
Bulk Buy
Special Options
The FLIR K1 is a rugged, compact thermal camera that serves as an extra set of eyes on the fire scene, allowing commanders, officers, and inspectors to quickly complete a thorough 360° assessment in total darkness and through smoke. With a bright, integrated flashlight, the FLIR K1 illuminates the scene to help the user steer and manage the crew more effectively. It also displays 160 × 120-pixel thermal images that help users gain additional situation awareness that is not possible with the naked eye. This product comes with a wrist strap, a USB-A to USB-C cable, a pouch, and the user manual.
Categories: All Products, Thermal Cameras
Brand: FLIR
$519.00
- Full Specifications
- IR Resolution
- 160 × 120 pixels
- Display
- 2.4 in. backlit LCD, 320 × 240 pixels
- Object Temperature Range
- High Gain Mode: –10°C to 140°C (14°F to 284°F) Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
- Image Modes
- • TI Basic (White-hot with isotherm) • White-hot • Iron
- Camera weight incl battery
- 0.41 kg (0.90 lb.)
- Camera size (L x W x H)
- 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
Imaging & Optical
- Built-in Digital Camera
- 320 × 240 pixels
- Depth of Field
- 0.1 m (0.33 ft.), infinity
- Detector Type
- Focal plane array, uncooled microbolometer
- Digital Camera FOV
- 71° × 56°, adapts to the IR lens
- Field of view (FOV)
- 57° × 44°
- f-number
- 1.1
- Focal Length
- 1.9 mm (0.075 in.)
- Focus
- Fixed
- Image Frequency
- 8.7 Hz
- Image Modes
- • TI Basic (White-hot with isotherm) • White-hot • Iron
- IR Resolution
- 160 × 120 pixels
- Multi Spectral Dynamic Imaging (MSX)
- Yes
- Pitch
- 12 µm
- Spatial resolution (IFOV)
- 6.22 mrad
- Spectral Range
- 8–13 µm
- Storage Capacity
- Approx. 10,000 images
- Thermal Sensitivity/NETD
- <100 mK @ 30°C (86°F)
Environmental & Certifications
- Corrosion
- NA
- Drop
- 2 m (6.6 ft.)
- EMC
- EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC Title 47 part 15, subpart B
- Encapsulation
- IP 67 (IEC 60529)
- Humidity (Operating and Storage)
- 0–90% RH (0°C–37°C / 32°F– 98.6°F); 0–65% RH (37°C–45°C / 98.6°F–113°F); 0–45% RH (45°C–55°C / 113°F–131°F)
- Magnetic fields
- EN 61 000-4-8 Class 3
- Operating Temperature Range
- Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –30°C to 55°C (–22°F to 131°F)
- Tripod Mounting
- UNC 1/4"-20
- Vibration
- 2 g (IEC 60068-2-6)
Power
- Battery capacity
- 3000 mAh
- Battery operating time
- Approximately 5.5 hours in MSX mode; 3.8 hours with torchlight only
- Battery Type
- Li ion
- Battery voltage
- 3.7 V
- Battery weight
- NA
- Charging system
- Battery is charged inside the camera
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 4 hours to 90%, 6 hours to 100%
- Power Management
- Adjustable
- Safety [power supply]
- Camera: IEC/EN 61010-1 Power supply: UL, CSA, CE, PSE, CCC, and SAA
- Start Up Time
- 15 s
- Start-up time from sleep mode
- TBD
Measurement & Analysis
- Accuracy
- ±5°C (±9°F) or ±5% in High Gain Mode, or ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F)
- Auto Range
- NA
- Automatic Hot Detection
- NA
- Camera size (L x W x H)
- 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
- Camera weight incl battery
- 0.41 kg (0.90 lb.)
- Isotherm
- • Yellow coloring 150°C to 250°C • Orange coloring 250°C to 350°C • Red coloring >350°C
- Object Temperature Range
- High Gain Mode: –10°C to 140°C (14°F to 284°F) Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
- Spot Meter
- Center spot
General
- Beam Angle
- 20°
- Compatible with FLIR software
- FLIR Tools
- Flashlight
- Bright LED flashlight
- LED CCT
- 5700K
- LED CRI
- 70
- Light Output
- 300 lumens
- Material
- PPSU Silicon rubber Aluminium, cast
- Packaging Size
- 283 × 148 × 103 mm (11.1 × 5.83 × 4.06 in)
User Interface
- Display
- 2.4 in. backlit LCD, 320 × 240 pixels
Communication & Data Storage
- Image Storage
- JPEG files
- Image Storage Capacity
- 4 GB
- Image Storage Mode
- FLIR radiometric JPEGs, visual JPEGs
- Interface
- Update from PC devices over USB
- Storage Media
- Internal memory (3.9 GB)
- USB
- USB Type-C
